Techmalux - Products - Lumolux S

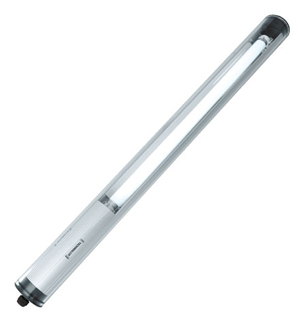

Lumolux S

Linear fluorescent tube
70mm Ø
Sealed to IP67

Type	Outer Tube	Part No.	Wattage	Length	Ballast / voltage

S/018	Acrylic	591-014-001	18w Linear	758mm	External Ballast
	Glass	591-014-002	18w Linear	758mm	External Ballast
S/036	Acrylic	591-015-001	36w Linear	1368mm	External Ballast
	Glass	591-015-002	36w Linear	1368mm	External Ballast
S/058	Acrylic	591-016-001	58w Linear	1668mm	External Ballast
	Glass	591-016-002	58w Linear	1668mm	External Ballast
S/216	Acrylic	591-002-001	2x8w Linear	524mm	KVG 230v Built-in
	Glass	591-002-002	2x8w Linear	524mm	KVG 230v Built-in
S/218	Acrylic	591-004-001	18w Linear	921mm	KVG 230v Built-in
	Glass	591-004-002	18w Linear	921mm	KVG 230v Built-in
S/236	Acrylic	591-005-001	36w Linear	1531mm	KVG 230v Built-in
	Glass	591-005-002	36w Linear	1531mm	KVG 230v Built-in
S/258	Acrylic	591-006-001	58w Linear	1871mm	KVG 230v Built-in
	Glass	591-006-002	58w Linear	1871mm	KVG 230v Built-in
SE/218	Acrylic	591-045-021	18w Linear	936mm	EVG 230v Built-in
	Glass	591-045-022	18w Linear	936mm	EVG 230v Built-in
SE/236	Acrylic	591-046-021	36w Linear	1546mm	EVG 230v Built-in
	Glass	591-046-022	36w Linear	1546mm	EVG 230v Built-in
SE/258	Acrylic	591-047-021	58w Linear	1871mm	EVG 230v Built-in
	Glass	591-047-022	58w Linear	1871mm	EVG 230v Built-in
SE/418	Acrylic	591-034-001	18w Linear	921mm	EVG 24v AC Built-in
	Glass	591-034-002	18w Linear	921mm	EVG 24v AC Built-in
SE/418	Acrylic	591-051-001	18w Linear	921mm	EVG 24v DC Built-in
	Glass	591-051-002	18w Linear	921mm	EVG 24v DC Built-in
SE/436	Acrylic	591-035-001	36w Linear	1531mm	EVG 24v AC Built-in
	Glass	591-035-002	36w Linear	1531mm	EVG 24v AC Built-in
SE/436	Acrylic	591-052-001	36w Linear	1531mm	EVG 24v DC Built-in
	Glass	591-052-002	36w Linear	1531mm	EVG 24v DC Built -in

KVG = Conventional Ballast
EVG = Electronic Ballast

Mounting Brackets

clamp
